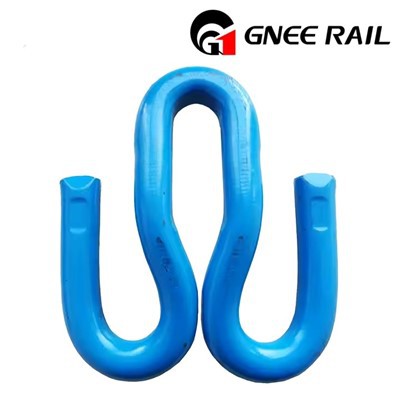

Track Fast Clips 1504
Pandrol's Fast Clip system epitomizes innovation in rail fastening. GNEE Rail's Fast Clip 1504 GNEE is a boltless, high-elasticity fastening solution offering superior vibration resistance and stability for rail-to-sleeper connections. Ideal for efficient, cost-effective track construction, it reduces maintenance needs and maximizes performance. GNEE Rail provides a wide range of fast clips, including Rail Fast Clip 16, 1500, 1501, 1502, 1306, 1508, 1504, 1600, and 1605. Additional offerings include systems like Pandrol E Clip, SKL Clip, KPO Clamp, Nabla Clip, and Deenik Clip. Fully compliant with global standards, our products can be customized. Reach out to us today!
| 1 | GB standard 60kg steel rail | |
| 2 | 1435mm | |
| 3 | 1:40 rail bottom slope is placed on the railway sleeper | |
| 4 | In general, the longitudinal resistance of each set of rail fastener and rails is larger than 9kN; | |
| 5 | The rail pad has a static stiffness of 50 to 70 kN/mm. | |
| 6 | After 3 million load cycles, the fastener system has no damage, and the buckle pressure changes is less than 20%; the longitudinal resistance of the rail changes is less than 20%; the static stiffness of the joint changes is less than 25%. | |
| 7 | The fastener system is tested according to EN13146-5, and the insulation resistance between the two rails is greater than 5kΩ. | |
| 8 | The fastener system can be successfully disassembled with a manual disassembly tool after the 300h salt spray test described in EN13146-6. | |
| 9 | The adjustment of the left and right position of the single-strand rail: -4~+2mm; Rail gauge adjustment: -8 ~ +4mm, adjustment level is 1mm. |
|
| 10 | The adjustment amount is 0mm. | |
| 11 | FC1504 type spring bar: buckle pressure is 10kN, spring range is 12mm; FC1306 type spring bar: buckle pressure is 3kN. |
|
| 12 | pulling resistance of the embedded iron seat in the railway sleeper is not less than 60kN. |
Track Fast Clip 1504 technical parameters
| E1,E2,E3 | 60Si2Mn | ø18 | 0.8 | 44-48 | Greater than or equal to 9.5KN | 5000000 times without break | ||
| E1609 | 60Si2Mn | ø18 | 93±3 | 0.43 | 44-48 | Greater than or equal to 9.5KN | 5000000 times without break | |
| E1809 | 60Si2Mn | ø18 | 104±3 | 0.62 | 44-48 | Greater than or equal to 9.5KN | 5000000 times without break | |
| E1817 | 60Si2Mn | ø18 | 104±3 | 37.5±3.0 | 0.62 | 44-48 | Greater than or equal to 9.5KN | 5000000 times without break |
| E2001 | 60Si2Mn | ø18 | 0.6 | 44-48 | Greater than or equal to 9.5KN | 5000000 times without break | ||
| E2007 | 60Si2Mn | ø18 | 105±5 | 38max | 0.62 | 44-48 | Greater than or equal to 9.5KN | 5000000 times without break |
| E2009 | 60Si2Mn | ø18 | 106±3 | 37.5 | 0.65 | 44-48 | Greater than or equal to 9.5KN | 5000000 times without break |
| E2055 | 60Si2Mn | ø20 | 106±3 | 56.6±3.0 | 0.8 | 44-48 | Greater than or equal to 9.5KN | 5000000 times without break |
| E2056 | 60Si2Mn | ø20 | 106±3 | 56.6±3.0 | 0.8 | 44-48 | Greater than or equal to 9.5KN | 5000000 times without break |
| E2063 | 60Si2Mn | ø20 | 110.5 | 53.5 | 0.8 | 44-48 | Greater than or equal to 9.5KN | 5000000 times without break |
| PR309 | 60Si2Mn | ø19 | 130 | 0.91 | 44-48 | Greater than or equal to 9.5KN | 5000000 times without break | |
| PR401 | 60Si2Mn | ø20 | 127±3 | 38.1±3.0 | 0.97 | 44-48 | Greater than or equal to 9.5KN | 5000000 times without break |
| PR601 | 60Si2Mn | ø19 | 0.8 | 44-48 | Greater than or equal to 9.5KN | 5000000 times without break | ||
| PR85 | 60Si2Mn | ø19 | 88±3 | 0.8 | 44-48 | Greater than or equal to 9.5KN | 5000000 times without break | |
| PR415 | 60Si2Mn | ø20 | 0.8 | 44-48 | Greater than or equal to 9.5KN | 5000000 times without break | ||
| PR601 | 60Si2Mn | ø20 | 44-48 | Greater than or equal to 9.5KN | 5000000 times without break | |||
| 60Si2Mn | ø18 | 100±3 | 44-48 | Greater than or equal to 9.5KN | 5000000 times without break | |||
| E18 | 60Si2Mn | ø18 | 100±3 | 44-48 | Greater than or equal to 9.5KN | 5000000 times without break | ||
| E19 | 60Si2Mn | ø18 | 100±3 | 44-48 | Greater than or equal to 9.5KN | 5000000 times without break | ||
| E20 | 60Si2Mn | ø18 | 100±3 | 44-48 | Greater than or equal to 9.5KN | 5000000 times without break | ||
| SKL1 | 60Si2Mn | ø13 | 133±2.3 | 0.48 | 44-48 | Greater than or equal to 9.5KN | 5000000 times without break | |
| SKL3 | 60Si2Mn | ø13 | 120±2 | 0.48 | 44-48 | Greater than or equal to 9.5KN | 5000000 times without break | |
| SKL12 | 60Si2Mn | ø13 | 0.53 | 44-48 | Greater than or equal to 9.5KN | 5000000 times without break | ||
| SKL14 | 60Si2Mn | ø13 | 155±2 | 0.53 | 44-48 | Greater than or equal to 9.5KN | 5000000 times without break | |
| Fast Clip-1508 | 60Si2Mn | ø15 | 0.58 | 44-48 | Greater than or equal to 9.5KN | 5000000 times without break | ||
| Fast clip-1501 | 60Si2Mn | ø15 | 0.58 | 44-48 | Greater than or equal to 9.5KN | 5000000 times without break | ||
| Fast Clip-16 | 60Si2Mn | ø16 | 0.6 | 44-48 | Greater than or equal to 9.5KN | 5000000 times without break |
